The Enigma Machine: How a Mechanical Marvel Shaped the Course of World War II

In the shadowy world of military intelligence during World War II, one device stood above all others in its impact on the course of history: the Enigma machine. This ingenious encryption tool became the backbone of Nazi Germany's secure communications, a seemingly unbreakable code that protected their most sensitive military operations. Yet the story of how the Allies cracked this supposedly impenetrable system represents one of history's greatest intellectual achievements and helped change the tide of war.

The Birth of an Encryption Legend

The Enigma wasn't originally created for warfare. Invented by German engineer Arthur Scherbius shortly after World War I, the device was initially designed for commercial and diplomatic purposes. Scherbius patented his invention in 1918 and formally introduced it at the International Postal Union Congress in 1923. His company, Chiffriermaschinen AG, began marketing the device to businesses and governments as a secure means of protecting sensitive communications.

What made the Enigma revolutionary was its electromechanical approach to encryption. Unlike simple substitution ciphers where each letter always transforms to the same replacement letter, Enigma's encryption changed with every keystroke. This "polyalphabetic" approach created a level of complexity that seemed mathematically impossible to solve without possessing the exact settings used for encryption.

After Scherbius's death in 1929, the rights to the Enigma passed through several hands before the German military recognized its potential. By the early 1930s, modified versions became standard equipment for all branches of the German armed forces, with the Navy implementing especially complex variants.

Technical Specifications and Evolution

The Enigma underwent numerous modifications throughout its operational life, with each variant increasing in complexity:

Commercial Enigma (1923-1926)

• Three rotors

• No plugboard

• Simple reflector

• Approximately 10^19 possible configurations

Wehrmacht Enigma (Army and Air Force, 1930s-1940s)

• Three rotors (from a set of five)

• Plugboard with up to 10 connections

• Improved reflector design

• Approximately 10^23 possible configurations

Kriegsmarine M3 (Naval, early war)

• Three rotors (from a set of eight)

• Plugboard with up to 13 connections

• Multiple reflector options

• Approximately 10^26 possible configurations

Kriegsmarine M4 (Naval, from 1942)

• Four rotors (using the additional "Beta" and "Gamma" rotors)

• Further enhanced security features

• Approximately 10^145 possible configurations

The physical dimensions of a typical Enigma machine were approximately 13.5 × 11 × 6 inches (34 × 28 × 15 cm), weighing about 26 pounds (12 kg). This relatively compact size made it portable enough for field operations while being robust enough for military use.

How the Enigma Worked: Deeper Technical Analysis

The genius of the Enigma lay in its deceptively simple appearance, masking incredible cryptographic complexity. At first glance, it resembled a typewriter in a wooden box, but its mechanisms created encryption that changed constantly.

The encryption process followed these steps:

• Initial Signal: When an operator pressed a key (e.g., "A"), an electrical current flowed from the keyboard.

• Plugboard Transformation: In military models, the current first passed through the plugboard (Steckerbrett), where pairs of letters were swapped. If "A" was connected to "R," the signal would proceed as if "R" had been pressed.

• Entry Wheel: The current then passed through the entry wheel (Eintrittswalze) into the rotor assembly.

• Rotor Scrambling: The signal passed sequentially through each rotor (usually three or four), with each rotor performing a different substitution based on its internal wiring and position.

• Reflector: After passing through all rotors, the signal hit the reflector (Umkehrwalze), which sent it back through the rotors in reverse order but along a different path.

• Return Path: The current passed back through all rotors, undergoing further substitutions.

• Final Output: The electrical current completed its circuit by lighting a lamp on the lampboard, indicating the encrypted letter.

• Rotor Movement: After each keystroke, at least one rotor would rotate, changing the electrical pathways for the next letter.

The rotors themselves were mechanical marvels.

• Each contained 26 electrical contacts on both faces, internally wired to create a substitution cipher

• The right-most rotor stepped with each keystroke

• When a rotor completed a full revolution, it triggered the next rotor to advance one position (similar to an odometer)

• Each rotor had a notch that determined when it would trigger the next rotor's movement

• The rotors could be installed in different positions and orientations, multiplying the possible configurations

The daily setup protocol required operators to:

• Select which rotors to use and in what order

• Set the initial position of each rotor

• Adjust the ring setting (Ringstellung) for each rotor

• Configure the plugboard connections

• Select which reflector to use (in models with multiple options)

These settings were distributed in codebooks, with different settings prescribed for each day and sometimes for different communication networks.

Breaking the Unbreakable: The Full Story

The story of breaking Enigma represents one of history's greatest intellectual triumphs. While popular culture often attributes this achievement solely to British mathematician Alan Turing, the reality involves a remarkable international effort spanning years.

The Polish Contribution

Poland, situated between Germany and the Soviet Union, had compelling reasons to monitor German communications. In 1929, the Polish Cipher Bureau began work on the Enigma problem, recruiting mathematics students from Poznań University.

Marian Rejewski made the crucial breakthrough in December 1932. Using mathematical theory and captured materials (including a commercial Enigma machine), he deduced the internal wiring of the military Enigma rotors. This achievement was previously thought impossible.

Rejewski's key insight came from analyzing message indicators (the method used to transmit the starting position of rotors). He developed a mathematical theory based on permutation groups that allowed him to determine rotor wiring without physically examining a military model.

The Polish team developed several techniques and devices:

• The "grill" method for determining rotor positions

• Cyclometer catalogs to decode daily keys

• The "bomba kryptologiczna" (cryptologic bomb)—six Enigmas working in parallel to test possible rotor settings

By 1938, Polish cryptanalysts could routinely decrypt German messages. However, in December 1938, Germany introduced two additional rotors and modified their procedures, rendering Polish methods less effective.

Facing imminent invasion, Poland shared their knowledge with French and British intelligence in July 1939, just weeks before World War II began. This transfer included replicas of the German Enigma, documentation of their methods, and working decryption equipment.

Bletchley Park and Ultra

The British established the Government Code and Cypher School at Bletchley Park, a Victorian mansion in Buckinghamshire. This facility eventually grew to employ nearly 10,000 people working in shifts around the clock.

Building on the Polish foundation, several key figures emerged:

• Alan Turing designed the improved electromechanical "bombe" machines that could test multiple Enigma settings simultaneously. His mathematical insights helped overcome the increasing complexity of German systems.

• Gordon Welchman developed the "diagonal board" enhancement to Turing's bombe, dramatically increasing its efficiency.

• Hugh Alexander, a chess champion, led the team focused on German naval codes.

• Joan Clarke, one of the few female codebreakers, worked closely with Turing on naval Enigma systems.

• Tommy Flowers, an engineer who later designed Colossus, the world's first programmable electronic digital computer, used to break the even more complex Lorenz cipher.

Several critical factors facilitated the breaking of Enigma:

1. Cribs: Known or guessed plaintext that likely appeared in messages, such as weather reports or standardized phrases like "Heil Hitler."

2. Operator Errors: Including repeated message keys, predictable rotor choices, or failure to change settings according to protocol

3. Physical Captures: Throughout the war, Allied forces captured Enigma machines, codebooks, and setting sheets from German ships, submarines, and installations

4. "Pinches": Deliberate operations to capture Enigma materials, such as the raid on U-110 in May 1941 or the capture of weather ships

The naval four-rotor Enigma (M4) used by German U-boats proved particularly challenging. Introduced in 1942, it temporarily blinded Allied intelligence during the critical Battle of the Atlantic. The inability to track U-boat wolfpacks led to devastating shipping losses until March 1943, when codebreakers finally conquered the M4 variant.

The Impact of Ultra Intelligence

The decrypted Enigma communications, codenamed "Ultra," provided unprecedented insight into German planning and operations. Some key impacts included:

• Battle of Britain (1940): Advance warning of Luftwaffe targets and tactics

• North African Campaign (1941–43): Intelligence on Rommel's supply situation and tactical plans

• Battle of the Atlantic (1939-45): Routing convoys away from U-boat wolfpacks

• D-Day (1944): Confirmation that German high command had fallen for deception about landing locations

• Battle of the Bulge (1944-45): Early indications of German offensive preparations

Military historians estimate Ultra Intelligence shortened the war by two to four years, potentially saving millions of lives. Yet the existence of Ultra remained classified until the 1970s, with many Bletchley Park veterans taking their secrets to the grave.

Operational Security and German Perceptions

The Germans maintained remarkable confidence in Enigma's security throughout the war. Several factors contributed to this false sense of security:

• Mathematical Assurance: German cryptographers calculated that brute-forcing Enigma would require resources beyond what they believed possible.

• Compartmentalization: Different branches of service used different procedures and settings, so vulnerabilities in one system didn't necessarily reveal weaknesses in others.

• Counter-Intelligence: WhenAllied actions suggested knowledge of German plans, investigations typically blamed human intelligence (spies) or radio direction finding rather than cryptanalytic breaches.

• Confirmation Bias: German leadership was psychologically invested in believing their encryption was secure, often dismissing evidence to the contrary.

In a few instances, German cryptanalysts suggested Enigma might be compromised, but these concerns were generally dismissed. Admiral Karl Dönitz became suspicious in 1943 when Allied countermeasures seemed too precisely timed but concluded that technical intelligence methods (like direction finding) were responsible.

To protect Ultra intelligence, the Allies took extraordinary measures:

• Creating cover stories for actionable intelligence

• Sometimes allowing German operations to succeed to protect the secret

• Establishing strict need-to-know protocols

• Using Ultra intelligence only when it could be plausibly attributed to other sources

The Human Element: Life at Bletchley Park

Bletchley Park represented an unprecedented concentration of intellectual talent. Recruits came from universities, chess clubs, crossword competitions, and linguistics departments. The selection process prioritized lateral thinking, pattern recognition, and problem-solving abilities over traditional credentials.

Daily life at "BP" was characterized by:

• Intense Secrecy: Workers signed the Official Secrets Act and were forbidden from discussing their work with anyone, including family and other BP staff outside their immediate section.

• Primitive Conditions: Despite its critical importance, the facility was often cold, damp, and overcrowded, with hastily constructed huts housing specialized teams.

• Shift Work: Codebreaking operated 24/7, with rotating shifts ensuring continuous coverage of German communications.

• Social Environment: Despite the pressure, a vibrant social scene developed, including theatrical performances, musical groups, and sports teams.

• Mental Strain: The combination of intellectual demands, secrecy, and awareness of lives hanging in the balance created significant psychological pressure.

The workforce was remarkably diverse for the era. Women comprised approximately 75% of Bletchley's staff, working as codebreakers, machine operators, translators, and analysts. Though many had degrees from Oxford and Cambridge, they were often classified in lower civil service grades than their male counterparts.

Notable figures like Dilly Knox, Stuart Milner-Barry, and Max Newman led specialized sections targeting different aspects of German communications. The organizational structure evolved throughout the war, eventually comprising numerous specialized huts and sections focused on specific military branches or geographic regions.

Legacy and Modern Implications

The breaking of Enigma accelerated Allied victory by an estimated two to four years, potentially saving millions of lives. Beyond the immediate military impact, this achievement helped birth modern computing and cryptography.

Technical Legacy

Turing's theoretical work on computable functions, combined with the practical challenges of Enigma decryption, laid the groundwork for computer science concepts we still use today. The tension between cryptographers and codebreakers that defined the Enigma story continues in today's digital security landscape.

Specific technical contributions include:

• Computational Theory: Concepts developed for breaking Enigma influenced early computer design

• Information Theory: Claude Shannon, the "father of information theory," was influenced by wartime cryptographic work

• Programmable Computing: The Colossus machines, developed to attack the Lorenz cipher used by German high command, pioneered electronic digital programmable computing

Cryptographic Principles

Modern encryption systems draw several lessons from the Enigma experience:

1. No Single Point of Failure: Modern cryptography relies on multiple independent security layers

2. Open Standards: Today's strongest encryption algorithms are publicly reviewed by experts

3. Computational Security: Modern systems require computational resources beyond current capabilities to break

4. Human Factor Awareness: Contemporary security recognizes that human error often provides the easiest attack vector

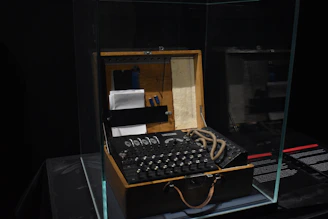

Surviving Machines and Museums

Of the approximately 40,000 Enigma machines manufactured, only about 350 are known to survive today. Notable collections include:

• The National Museum of Computing at Bletchley Park, UK

• National Cryptologic Museum at Fort Meade, Maryland, USA

• Deutsches Museum in Munich, Germany

• Science Museum in London, UK

Individual Enigma machines have sold at auction for over $500,000, reflecting their historical significance and rarity.

Cultural Impact

• The Imitation Game (2014): Film starring Benedict Cumberbatch as Alan Turing

• Enigma (2001): Film based on Robert Harris's novel

• Bletchley Circle (2012-2014): Television series about former Bletchley women using their skills to solve crimes

• The Code Book by Simon Singh: Popular science book with extensive coverage of Enigma

• Station X by Michael Smith: History of Bletchley Park

Post-War Developments

Operation TICOM and Cold War Usage

• As the war ended, Allied intelligence launched Operation TICOM (Target Intelligence Committee) to capture German cryptographic personnel and equipment. Some captured Enigma machines were provided to friendly but less technologically advanced nations for diplomatic security.

• Remarkably, several countries continued using Enigma-based systems into the 1970s, unaware that the encryption had been broken decades earlier. Intelligence agencies, particularly the NSA and GCHQ, maintained capabilities to read these communications while encouraging their continued use.

Delayed Recognition

• The Ultra secret remained classified until the 1970s. The first major public disclosure came with the publication of F.W. Winterbotham's "The Ultra Secret" in 1974. This began a gradual process of recognition for the Bletchley Park codebreakers.

• Many veterans had died without public acknowledgment of their contributions. Others lived modest lives, unable to include their most significant accomplishments on resumes or job applications. The belated recognition brought validation but also highlighted the personal sacrifices made in service of secrecy.

The Polish Contribution Rediscovered

The crucial Polish role in breaking Enigma was initially overshadowed in early historical accounts. Gradually, historians have highlighted the foundational work of Rejewski, Różycki, and Zygalski. In 2014, Poland posthumously awarded Alan Turing its Knowlton Award, while the UK has established memorials recognizing the Polish cryptographers.

Modern Encryption and the Enigma Legacy

Today's encryption systems are digital rather than mechanical, but many principles established during the Enigma era remain relevant:

Symmetric vs. Asymmetric Keys

• Enigma used symmetric key cryptography—the same key encrypted and decrypted messages. Modern systems often use asymmetric (public-key) cryptography, where different but mathematically related keys perform encryption and decryption.

Key Distribution Problem

• One of Enigma's vulnerabilities was the physical distribution of codebooks. Modern systems address this through secure key exchange protocols and certificate authorities.

Cryptanalytic Approaches

• Statistical analysis

• Known plaintext attacks

• Side-channel attacks (using information gained from physical implementation)

• Exploitation of operational practices and human error

Quantum Computing Challenge

Just as Enigma seemed secure until faced with unanticipated computational approaches, today's encryption faces potentially existential challenges from quantum computing. Many modern cryptographic systems rely on mathematical problems that are computationally intensive for classical computers but could be solved efficiently by quantum computers using Shor's algorithm.

This has prompted the development of post-quantum cryptography—encryption methods resistant to quantum attacks. Much like the mathematicians at Bletchley Park had to think beyond conventional approaches to defeat Enigma, today's cryptographers are developing new algorithms based on lattice problems, hash functions, and other structures believed to resist quantum methods.

The Enigma machine stands as both a brilliant technical achievement and a cautionary tale about placing absolute faith in technology. Its complexity was remarkable for its time, yet human ingenuity, persistence, and teamwork eventually overcame what seemed mathematically impossible.

The most enduring legacy of the Enigma story may be how it demonstrates the power of collaborative intelligence against seemingly insurmountable odds. The international effort spanning Polish mathematicians, British codebreakers, and Allied naval forces created a template for tackling complex technical challenges that continues to inspire.

Today, as nations and corporations develop ever more sophisticated encryption systems, the fundamental tension between security and accessibility remains. Every encrypted system must balance being secure enough to resist unauthorized access while remaining practical for legitimate users. The Enigma was ultimately defeated not just through mathematical brilliance but by exploiting this inherent tension.

In our digital age, with encryption protecting everything from banking transactions to personal communications, the lessons of Enigma remain profoundly relevant. No system, no matter how mathematically sound, exists in isolation from human operators and organizational procedures. The weakest link in security often lies not in the algorithm but in its implementation and operation—a truth the Germans learned at tremendous cost in World War II.

The Enigma machine's story—from commercial device to military cornerstone to broken system—serves as a reminder that technological advantages are temporary, while the human capacity for innovation, cooperation, and creative problem-solving remains our most enduring asset in facing seemingly impossible challenges.
