Intel Xeon V2 vs V3 vs V4: Powering Enterprises Through Generational Advancements?

Intel's Xeon processors are a cornerstone in the server, workstation, and enterprise computing space, known for their reliability, scalability, and performance in handling demanding workloads. These processors are widely used because they deliver high core counts, advanced memory support, and powerful instruction sets, making them indispensable for industries ranging from cloud computing to scientific research. Over successive generations, the Xeon lineup has delivered significant advancements in performance, efficiency, and scalability. This article provides an in-depth comparison of three key Xeon generations: V2 (Ivy Bridge EP), V3 (Haswell EP), and V4 (Broadwell EP). Each generation brought unique improvements, and understanding their differences is crucial for businesses and developers deciding which processor suits their specific workloads, such as running complex databases, enabling cloud computing infrastructures, or supporting AI and machine learning applications.

Xeon V2 (Ivy Bridge EP)

Released in 2013, the Xeon V2 processors were built on Intel's 22nm manufacturing process. As a successor to the Sandy Bridge architecture, Ivy Bridge introduced efficiency improvements and higher core counts.

Key Features

• Process Technology: 22nm

• Core Count: Up to 12 cores per CPU

• Clock Speed: 2.0 GHz to 3.5 GHz (base clock)

• Memory: Support for DDR3 with speeds up to 1866 MHz

• Cache: Up to 30MB L3 cache

• TDP (Thermal Design Power): 70W to 150W

• PCIe Support: PCIe 3.0 (up to 40 lanes)

Highlights

• Lower power consumption than its predecessor (Sandy Bridge).

• Improved per-core performance and power efficiency.

• Supported dual-socket configurations, enabling scalability up to 24 cores per server.

Xeon V3 (Haswell EP)

Launched in 2014, Xeon V3 brought significant architectural changes. Built on Intel’s 22nm process, it introduced the AVX2 instruction set and support for DDR4 memory.

Key Features

• Process Technology: 22nm

• Core Count: Up to 18 cores per CPU

• Clock Speed: 2.0 GHz to 3.7 GHz (base clock)

• Memory: DDR4 support (up to 2133 MHz) and backward compatibility with DDR3

• Cache: Up to 45MB L3 cache

• TDP: 55W to 160W

• PCIe Support: PCIe 3.0 (up to 40 lanes)

Highlights

• Introduced DDR4 memory support, providing higher bandwidth and lower power consumption compared to DDR3.

• Improved virtualization performance, making it a popular choice for cloud computing and enterprise virtualization.

• Higher core counts and enhanced AVX2 instructions for better parallelism in workloads like AI and big data.

Xeon V4 (Broadwell EP)

Released in 2016, Xeon V4 processors were built on Intel’s 14nm process, offering better power efficiency and higher performance. Broadwell EP refined the features of Haswell EP while introducing more cores and larger caches.

Key Features

• Process Technology: 14nm

• Core Count: Up to 22 cores per CPU

• Clock Speed: 2.0 GHz to 3.6 GHz (base clock)

• Memory: DDR4 support (up to 2400 MHz)

• Cache: Up to 55MB L3 cache

• TDP: 55W to 160W

• PCIe Support: PCIe 3.0 (up to 40 lanes)

Highlights

• Increased core count and cache size, making it ideal for highly parallelized workloads.

• Enhanced power efficiency due to the 14nm process.

• Optimized for high-performance computing (HPC), big data, and AI applications.

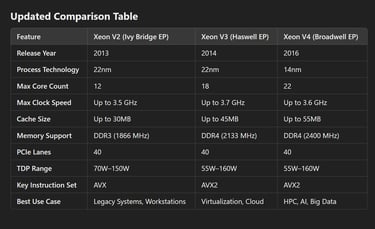

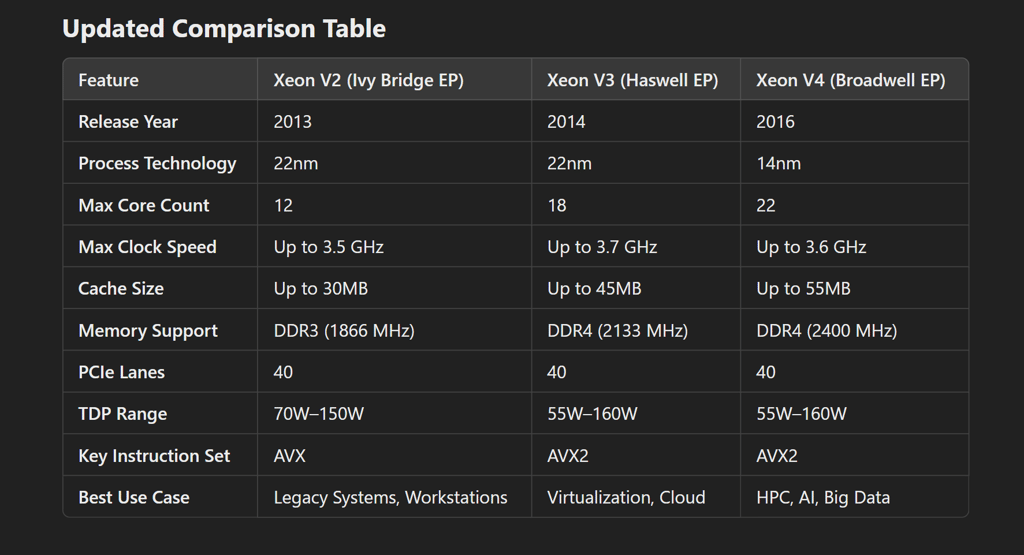

Performance Comparison

Core Count and Scalability

The number of cores in each generation increased significantly, providing greater performance for multithreaded workloads.

• Xeon V2: Up to 12 cores per CPU

• Xeon V3: Up to 18 cores per CPU

• Xeon V4: Up to 22 cores per CPU

In dual-socket configurations, this translates to 24, 36, and 44 cores, respectively, making the V4 a powerhouse for data centers and HPC environments.

Memory Bandwidth and Support

Memory bandwidth is critical for applications that process large datasets, such as database querying, real-time analytics, and AI model training. For example, businesses running complex simulations or rendering high-resolution media heavily rely on ample memory bandwidth to ensure smooth performance and minimal bottlenecks. The introduction of DDR4 in V3 and V4 offered faster speeds and lower power consumption.

• Xeon V2: DDR3 (up to 1866 MHz)

• Xeon V3: DDR4 (up to 2133 MHz) and DDR3 (backward compatibility)

• Xeon V4: DDR4 (up to 2400 MHz)

Higher memory speeds and larger capacities in the V3 and V4 generations significantly boosted performance for memory-intensive tasks like big data analytics and virtualization.

Instruction Set Enhancements

The AVX2 instruction set introduced with Xeon V3 doubled the floating-point operations per cycle compared to AVX in Xeon V2. This made V3 and V4 far superior for workloads such as scientific simulations and AI model training.

• Xeon V2: AVX (Advanced Vector Extensions)

• Xeon V3 and V4: AVX2, offering better performance for parallel processing.

Power Efficiency

• Xeon V2 (22nm): Moderate power consumption, suitable for legacy systems.

• Xeon V3 (22nm): Improved efficiency with better thermal management.

• Xeon V4 (14nm): Best efficiency, enabling higher core counts without significant increases in power consumption.

Real-World Applications

Xeon V2 (Ivy Bridge EP)

• Enterprise Servers: Ideal for legacy workloads like database management and ERP systems, used by industries like retail and manufacturing.

• Workstations: Supported CAD, 3D modeling, and video editing for small studios and engineering firms.

• Scientific Computing: Utilized by academic institutions and research labs for mid-tier HPC applications that didn’t require cutting-edge performance.

Xeon V3 (Haswell EP)

• Cloud Computing: Widely adopted by companies like VMware and Amazon for running virtual machines and containers efficiently.

• AI & Machine Learning: Improved instructions and memory bandwidth supported training smaller machine learning models in sectors such as healthcare (e.g., diagnostic imaging).

• Big Data Analytics: Enhanced parallelism allowed better handling of large datasets in industries like finance and telecommunications.

Xeon V4 (Broadwell EP)

• High-Performance Computing: Utilized by research institutions and corporations for simulations and research applications like weather modeling, genomics, and oil exploration.

• AI & Deep Learning: While GPUs are preferred for deep learning, the V4’s AVX2 supports improved training efficiency for CPU-based tasks in AI startups and enterprise-level AI deployments.

• Enterprise Cloud Infrastructure: Adopted by companies like Google and Microsoft for their scalable, power-efficient data centers.

Xeon V2 (Ivy Bridge EP)

• Enterprise Servers: Ideal for legacy workloads like database management and ERP systems.

• Workstations: Supported CAD, 3D modeling, and video editing with decent performance.

• Scientific Computing: Used in mid-tier HPC applications that didn’t require cutting-edge performance.

Xeon V3 (Haswell EP)

• Cloud Computing: Higher core counts and DDR4 support made it ideal for running virtual machines.

• AI & Machine Learning: Improved instructions and memory bandwidth supported training smaller machine learning models.

• Big Data Analytics: Enhanced parallelism allowed better handling of large datasets.

Xeon V4 (Broadwell EP)

• High-Performance Computing: With up to 22 cores, the V4 excelled in simulations and research applications like weather modeling and genomics.

• AI & Deep Learning: While GPUs are preferred for deep learning, the V4’s AVX2 supports improved training efficiency for CPU-based tasks.

• Enterprise Cloud Infrastructure: Power efficiency and scalability made it the top choice for data centers.

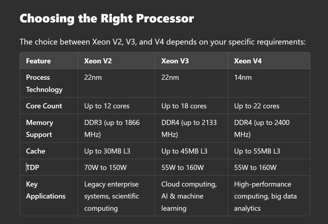

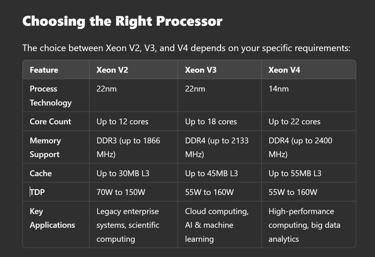

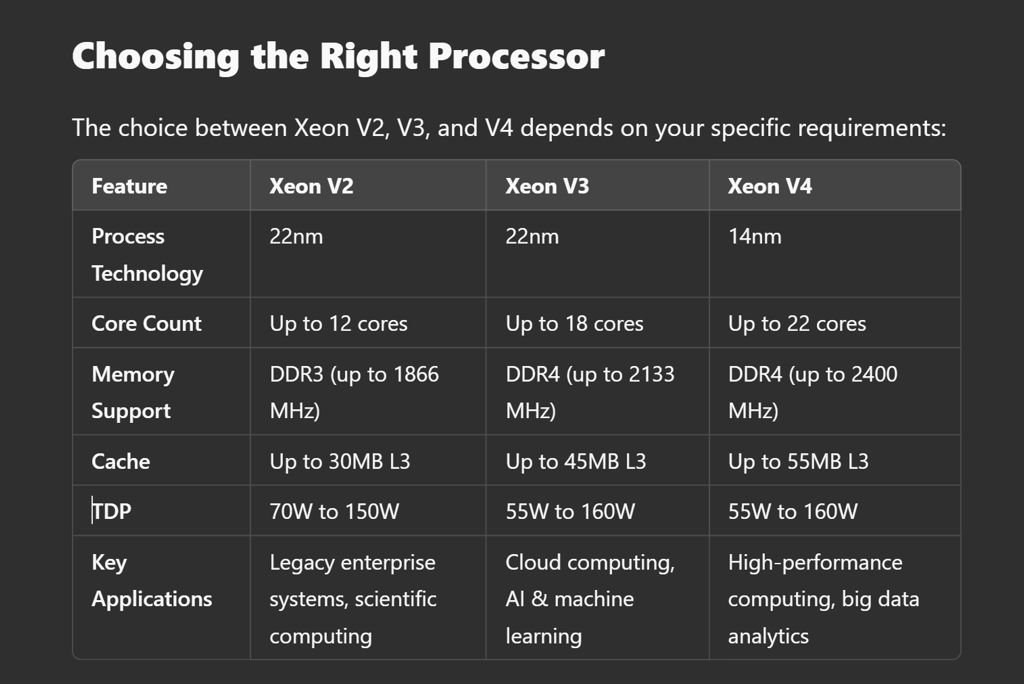

Cost vs. Performance

• Xeon V2: Affordable for legacy systems but lacks the features required for modern workloads.

• Xeon V3: Offers an excellent balance of price and performance, making it suitable for mid-tier enterprises.

• Xeon V4: Premium pricing but delivers unmatched performance for high-end workloads.

• Choose Xeon V2 if you need a budget-friendly processor for legacy systems or moderate workloads.

• Choose Xeon V3 for a balance of performance and cost, particularly for virtualization and cloud-based applications.

• Choose Xeon V4 for cutting-edge performance, scalability, and power efficiency in demanding environments like HPC and AI.

Context on Intel Xeon Processors

Intel Xeon processors are designed specifically for professional workloads requiring high computational power, reliability, and scalability. They are widely adopted across industries because of their

• Error-Correcting Code (ECC) Memory Support: Prevents data corruption, making them ideal for mission-critical applications like financial transactions and healthcare systems.

• Scalability: Ability to support multi-processor configurations for larger computing environments.

• Optimized Power Efficiency: Designed for 24/7 operation in server environments with minimal energy costs.

• Long-Term Platform Stability: Ensures compatibility with enterprise-grade hardware and software ecosystems over extended lifecycles.

Detailed Real-World Examples by Industry!

Healthcare

• Xeon V3 and V4 processors are widely used in diagnostic imaging systems (e.g., CT scans, MRIs) that require real-time data processing.

• Hospitals rely on Xeon-based servers to manage Electronic Health Records (EHR) for millions of patients.

Finance

• Xeon processors (especially V4) power trading platforms and risk analysis systems, offering low latency and high reliability.

• Financial institutions use these processors for high-frequency trading algorithms and fraud detection systems.

Media & Entertainment

• Studios leverage Xeon processors for 3D rendering, video encoding, and post-production workflows.

• Xeon V3 and V4 generations are particularly effective in managing real-time, high-resolution video streams.

Research Institutions

• Universities and research labs use Xeon V4 for computational tasks such as weather simulations, genetic sequencing, and astrophysics modeling.

• For example, genomic research requires analyzing vast datasets, which the high core count and memory bandwidth of Xeon V4 can handle efficiently.

Cloud & AI Startups

• Companies like AWS, Microsoft Azure, and Google Cloud rely heavily on Xeon V3 and V4 processors to power their virtualized infrastructure.

• AI startups use Xeon processors to train and deploy machine learning models where GPUs are not necessary.

Technical Improvements in Xeon Generations

• Xeon V2 (Ivy Bridge EP): Marked a significant improvement in floating-point operations, which benefited applications like scientific simulations.

• Xeon V3 (Haswell EP): The AVX2 instruction set allowed double the floating-point performance, making it a game-changer for AI workloads and scientific modeling.

• Xeon V4 (Broadwell EP): Enhanced cache hierarchy and support for DDR4 memory offered smoother performance in database management and real-time analytics.

Legacy Support

• Xeon V2 processors are still found in older data centers, where cost-effectiveness and basic performance are the priorities. Companies with existing Xeon V2 setups often upgrade their workloads using virtualization to extend the hardware’s usefulness.

• Xeon V3 and V4 processors provide backward compatibility with DDR3, ensuring a smoother transition for enterprises looking to upgrade without overhauling their entire IT infrastructure.

Why Xeon Processors Matter!

Reliability for Critical Workloads

• Industries like aerospace, automotive, and energy depend on Xeon processors for real-time analysis, simulation, and control systems.

• These processors are certified to work seamlessly with enterprise-grade software such as SAP, Oracle, and VMware.

Versatility

• From small businesses to large-scale cloud providers, Xeon processors cater to a wide spectrum of needs.

• Their ability to handle diverse workloads, including AI inference, data compression, and scientific modeling, highlights their flexibility.

Longevity and Support

• Intel offers long-term support for Xeon processors, ensuring compatibility with enterprise software for years, reducing the need for frequent hardware replacements.

Intel’s Xeon V2, V3, and V4 processors represent significant milestones in server and enterprise computing. While the V2 provided reliable performance for legacy systems, the V3 introduced modern features like DDR4 and AVX2, and the V4 refined these advancements with higher efficiency and scalability. By understanding the capabilities of each generation, businesses can make informed decisions to optimize their workloads and maximize their investment.
